BDS Suspension 6" Suspension Lift Kit 2007-2013 Chevrolet / GMC 1500 Silverado / Sierra 4WD 176H

BDS Suspension 6" Lift Kit for 2007 - 2013 Chevrolet/GMC 4WD 1500 Series Silverado/Sierra 1/2 ton pickup.

The unique BDS High Clearance design is a true blend of performance, appearance, and function.The suspension geometry of this 6" lift kit creates a factory style ride with a desert racing appearance. The black powdercoated high arched crossmembers blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 6" and increasing ground clearance at the front crossmember by 91%.

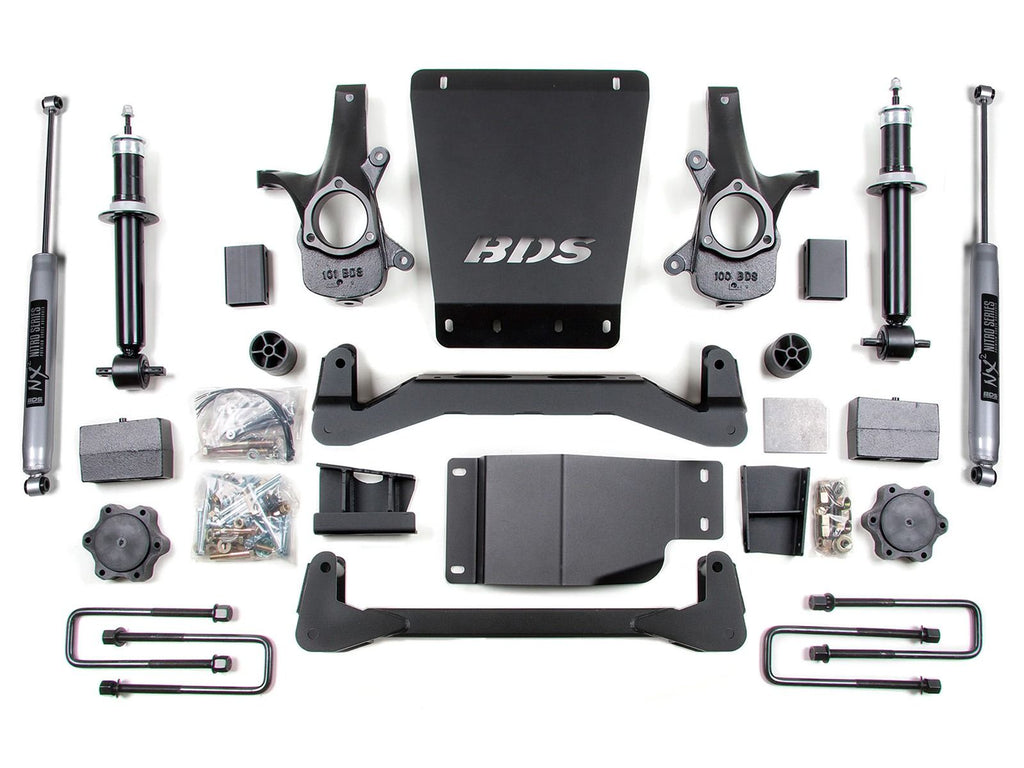

This comprehensive IFS lift kit includes ductile steering knuckles correcting steering geometry to O.E. angles and custom valved front coil over strut cylinders with 18 mm shafts designed to handle increased tire & wheel weight without sacrificing ride quality. Heavy duty front and differential skid plates are also included for extreme off road protection as well as rear NX² series shocks

Rear Glide Ride Leaf Springs, and 9500 series gas shocks are just a few of the options and upgrades available when customizing this 6" 4WD lift kit.

Check out the Chevrolet 2010 concept truck using a BDS suspension system.

Note: Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.

• Tire & Wheel Combinations
• 33" x 12.50" w/17 x 8 and 4-1/2" back spacing
• 35" x 12.50 w/17 x 9 or 18 x 9 and 5" back spacing
• 35" x 12.50" w/20 x 9 and 5.75" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 4
• View complete Vehicle Fitment Information here

Important Kit Notes

• 1. Will NOT FIT 2014 MODEL YEAR.
• 2. Strut compressor required for installation
• 3. This system will not fit 2007 classic models
• 4. Requires frame bracket modification
• 5. 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
• 6. Traction bars will not fit regular cab short box models.
• 7. Add 121651 Auxillary Differential support bracket for AWD models. Also may require front driveline modification.
• 8. Will not fit two-mode hybrid models with electronic power steering.
• Note: Stock 20" wheels can be re-installed only with factory tire size. Factory 17 and 18's cannot be re-installed.
