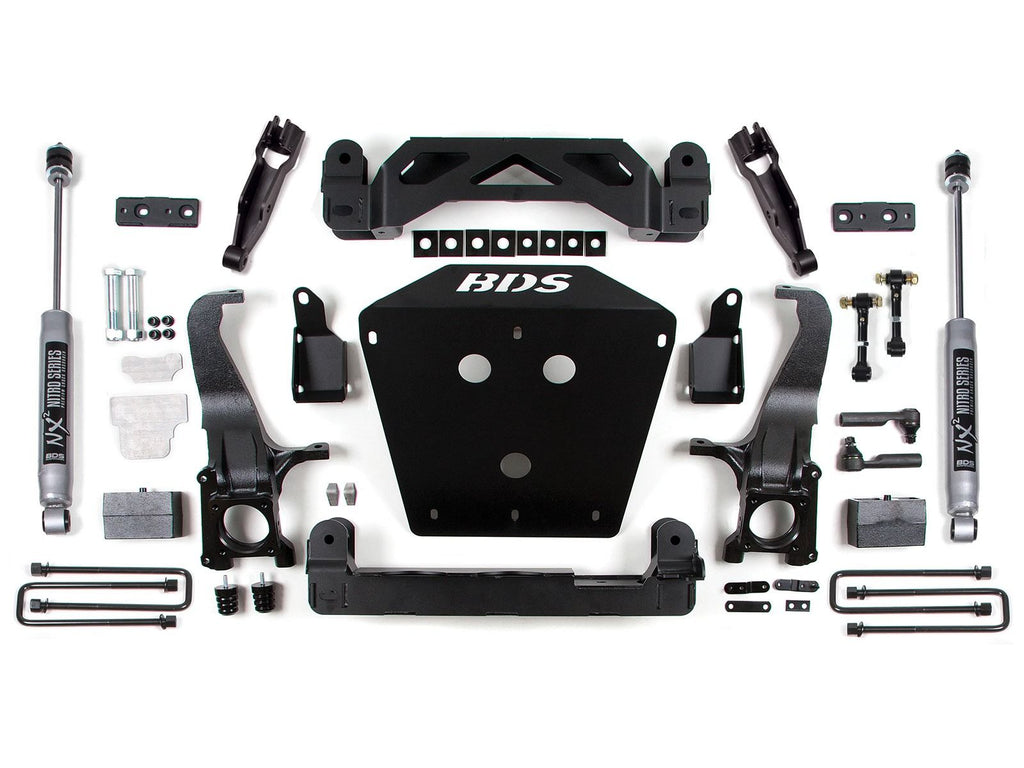

BDS Suspension 4.5" Suspension System 2016-2018 Toyota Tundra 4WD 819H

BDS Suspension 4.5" lift kit for the 2016-17 Toyota Tundra 4WD

This complete 4.5" IFS w/ strut mount lift kit system incorperates the same features, technology, and performanced based design as our popular 07-15 system. This system is not only built for daily driving, but will handle about any off road excursion you can think of. The heavy duty main crossmembers are locked together by a full belly pan that offers superior off road protection.

Included with this IFS lift kit are CNC machined steering knuckles which ensure a clean and simple install that is made easier by the lower strut mounts that don't require you to disassemble the strut. Rear NX² series shock absorbers are included with 9500 series gas shocks available as an upgrade for this 4.5" Toyota Tundra lift kit.

Check out the install article published in Four Wheeler magazine.

• Tire & Wheel Combinations
• 35 x 12.50 w/18x9 and 5-1/2 back spacing
• 35 x 12.50 w/20x9 and 5-1/2 - 6.25" back spacing

*Trimming may be required*

• Est. Installation: 8 hours
• Difficulty Level (easy 1 - 5 complicated): 3
• View complete Vehicle Fitment Information here

Important Kit Notes

• 1. Requires frame bracket modification and welding.
• 2. No strut dissassembly required.
• 3. Stock 18" wheels can not be installed. factory 20" wheels with more than 6.25" backspacing can not be installed.
• 4. Models with two piece rear drive line would require rear drive shaft modification.
• 5. Models equipped with 6 piston calipers require modification.
• 6. Will NOT work on TRD Pro (Bilstein Piggback Strut) models.
