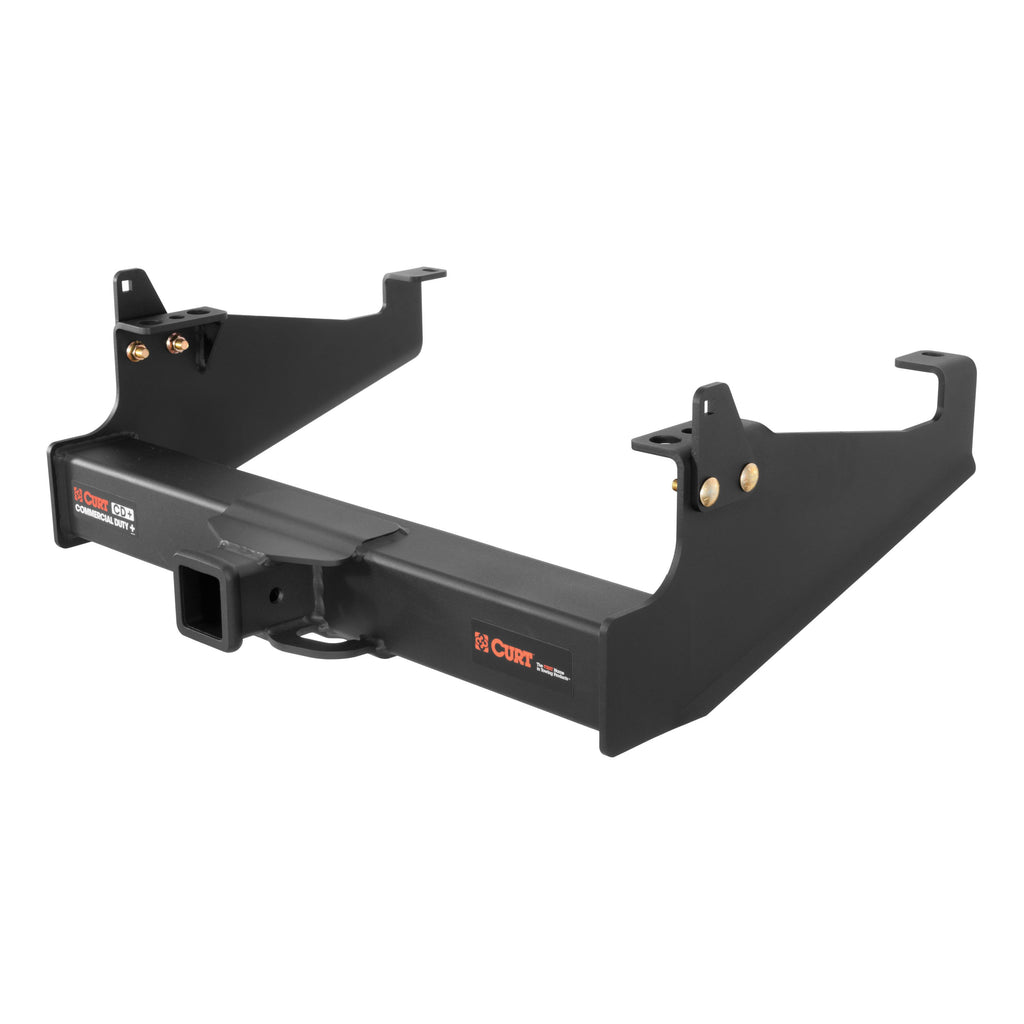

Commercial Duty Class 5 Hitch, 2-1/2", Select Ford F350, F450, F550, F650 15845

Made in USA (may include imported hardware)

Rated to 20,000 lbs. gross trailer weight and 2,700 lbs. tongue weight

Compatible with weight distribution hitch (20,000 lbs. WD / 2,700 lbs. WDTW)

Engineered with a vehicle-specific design for a custom fit

Tested for safety in accordance with SAE J684

Precisely welded for superior strength and fit

Constructed with a large, powerful main body

Protected by a highly durable carbide powder coat finish

Co-cured in a rust-resistant liquid A-coat, inside and out

Features wide safety chain openings for heavy-duty hooks

Equipped with an open-back receiver for easy cleaning

Limited lifetime warranty (one-year finish, one-year parts)

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Ford F350 Super Duty, F450 Super Duty, F550 Super Duty and F650 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

Fitment

Year |	Make |	Model |	Submodel |	Body/Cab |	Fitment Notes |	Bed Type |	Bed Length |	Engine Cyclinders |	Engine Liter |	Engine Aspriation |	Drive
2010	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2010	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2010	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2010	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2010	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2010	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2010	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2010	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2010	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2011	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2011	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2012	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2012	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2013	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2013	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2014	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2015	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2015	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2016	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2016	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2017	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2017	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2018	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2018	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2019	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2019	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2020	Ford	F-350 Super Duty		Cab & Chassis	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2020	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2020	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2020	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2020	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2020	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2020	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2020	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2021	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2021	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2021	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2021	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2021	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2021	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2021	Ford	F-650			Visibility - Exposed; Installation Time - 30-60 minutes; Drilling Required - No		0
2021	Ford	F650			Drilling Required - No; Installation Time - 30; Visibility - Exposed		0
2022	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2022	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2022	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2022	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2022	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2022	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2022	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2023	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2023	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2023	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2023	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2023	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2023	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2023	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2024	Ford	F-450 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2024	Ford	F-450 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2024	Ford	F-450 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2024	Ford	F-550 Super Duty		Cab & Chassis - Conventional	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2024	Ford	F-550 Super Duty		Cab & Chassis - Crew Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2024	Ford	F-550 Super Duty		Cab & Chassis - Extended Cab	Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0
2024	Ford	F-650			Drilling Required - No; Installation Time - 30-60 minutes; Visibility - Exposed		0

Additional Resources

Installation Instructions
