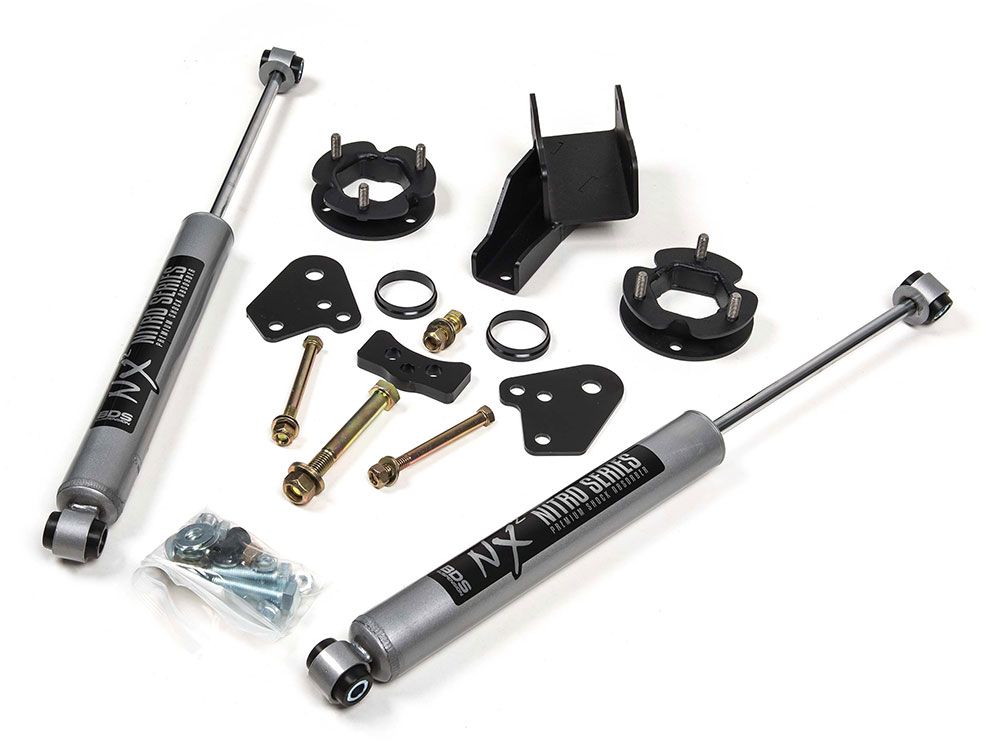

This new system builds off the factory suspension mounting points and offers improved strength, ground clearance and suspension travel. All components have been engineered in unison to ensure suspension and drivetrain geometry is maintained, rather than other " leveling kits" on the market that just throw in a top spacer which maxes out the angles at droop. The new ride height is the result of a combination of a specially designed top mounted steel fabricated strut spacer in conjunction with a preload spacer for a total 2.5" of front lift. The reason for the combination is to achieve the correct ride height without increasing the overall extended length of the strut assembly too the point of causing premature wear of the CV axle boots and other front end components. To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. In the rear the factory shocks are replaced with your choice of precision tuned NX2 gas or FOX 2.0 performance IFP gas shocks for improved damping.
Optional accessories include the BDS performance upper control arm (UCA) kit and 1" HD rear shackle kit. All kits come finished in a durable black e-coat finish and sent with all hardware packs to complete the install along with step-by-step installation instructions. All BDS kits include Factory Protection Plus for the ultimate extended warranty to include BDS's No Fine Print Warranty, ESC System compatibility and a 5year-60mile drivetrain warranty to match the dealer. Improve the look and capability of your 2019 Ford Ranger with these new 2.5" lift systems from BDS Suspension.
*Trimming may be required*
